16mm Farm Irrigation System Plastic Tubes Water Supply HDPE Pe Pipes For Agriculture
----------------------------------------
Basic Info.

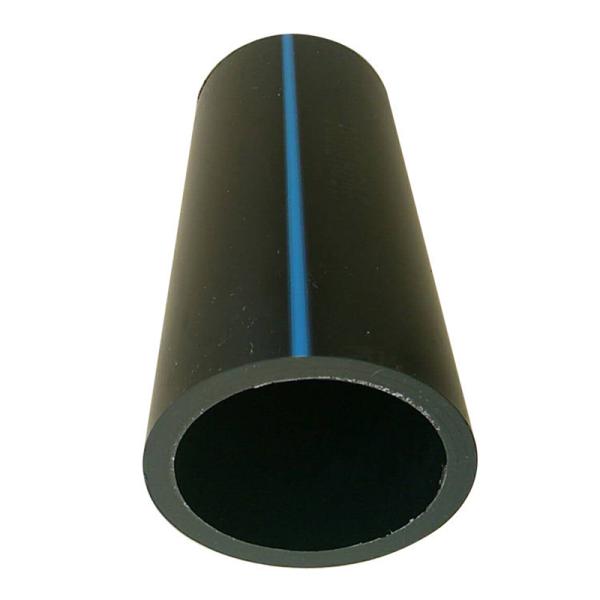

HDPE water supply pipe uses PE100 high-density polyethylene as the raw material for extrusion molding, replacing the traditional galvanized pipe, creating a new world in the water supply field.
Outer Diameter
DN (mm) | SDR 9
PN20 | SDR 11
PN16 | SDR 13.6
PN12.5 | SDR 17
PN10 | SDR21
PN8 | SDR26
PN6 | Packing
Loaded into 40GP/Piece
6m or 12m per Piece |
| | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | |
| 75 | 8.4 | 6.8 | 5.6 | 4.5 | | | 1085 |
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | | 754 |
| 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 | 504 |
| 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 | 378 |
| 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | 304 |
| 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | 224 |
| 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | 182 |
| 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | 143 |
| 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 | 110 |
| 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 | 90 |
| 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 | 72 |
| 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 | 56 |
| 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 | 42 |
| 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 | 30 |
| 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 | 25 |
| 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 | 20 |
| 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 | 16 |
| 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 | 12 |
| 710 | | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | 9 |
| 800 | | 72.7 | 58.8 | 47.4 | 38.1 | 30.6 | 6 |
| 900 | | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | 6 |
| 1000 | | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | 4 |
| 1200 | | | 88.2 | 67.9 | 57.2 | 45.9 | |
| 1400 | | | 102.9 | 82.4 | 66.7 | 53.5 | |
| 1500 | | | 110.2 | 88.2 | 71.4 | 57.6 | |
| 1600 | | | 117.6 | 94.1 | 76.2 | 61.2 | |
Advantage
1. Non-toxic and healthy: PE pipe is non-toxic and tasteless. It is a green building material through strict hygienic monitoring. It will never scale and can effectively improve water quality.
2. Corrosion resistance: PE is an inert material and can withstand various chemical media.
3. No leakage: PE pipe adopts electrofusion connection, and its interface strength is higher than the pipe itself.
4. High toughness: The elongation at break of PE pipe is generally above 500%...For the uneven settlement of the base layer, its adaptability is very strong and the seismic performance is good.
5. Excellent resistance to rapid crack propagation (RCP).
6. Excellent flexibility and scratch resistance.
7. Good wear resistance, low wall friction coefficient, low flow resistance, and excellent conveying capacity.
8. A variety of non-excavation methods can be used, and the construction and installation are extremely convenient.
9. The system cost is low, and the maintenance cost is low, which can greatly reduce the project cost.
Details
Application
Urban tap water pipe network system;
Urban and rural drinking water pipelines;
Agricultural irrigation pipes;
Mine mortar conveying pipeline;
Protective sleeves for post and telecommunications lines and power wires;
Material and liquid transportation pipelines in chemical, chemical fiber, food, forestry, printing and dyeing, pharmaceutical, light industry, papermaking, metallurgical and other industries.
Certificate
Company Profile
High Mountain Pipe Industry is a high-tech enterprise integrating production and sales of sewage treatment equipment and municipal water supply and drainage pipelines. With a long-term vision and taking advantage of the background of Internet big data, we rely on our own production technology strength to continuously explore the transformation and upgrading strategies of traditional production enterprises, and become a new domestic "Internet + pipeline building material" production enterprise! The company integrates product development, production and sales.
FAQ
Q: What is your minimum order quantity?
A: Accessories: one box or one bag.
Pipeline: 200~5000 meters/size, depending on different sizes.
Q: What is your warranty policy?
A: The product is guaranteed for two years from the date of shipment (or leaving the seller's factory depending on the terms).
It is also guaranteed that the product can be used for 50 years.
Q: After reading your FAQ, I am very satisfied. How can I start buying my order?
A: Please contact our sales manager by email or phone, thank you.
