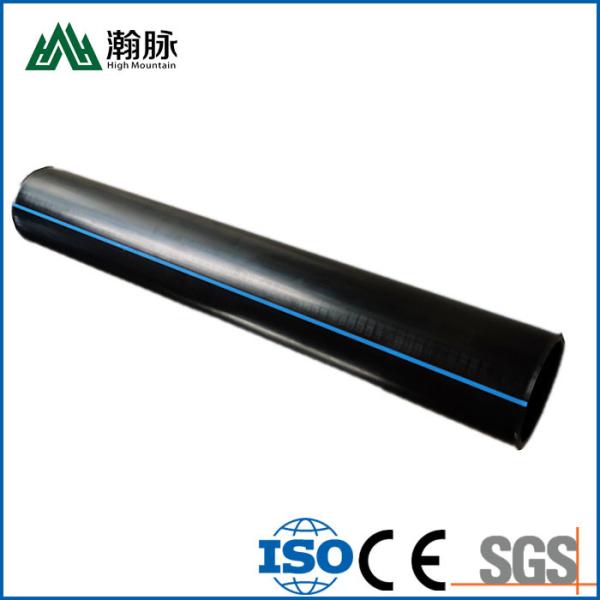

New Material Hdpe Pipes 90 110 160 200 PE Water Supply Pipe HDPE Hot Melt Pipe PE Agricultural Irrigation
----------------------------------------
Basic Info.
Farmland irrigation pipe is a new type of plastic pipe product made of high-quality polyethylene resin as the main raw material, adding necessary antioxidants, ultraviolet absorbers and other additives, and extruded by an extruder.
| Size | | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa |
| | | SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 |
| OD(inch) | OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
| 1/2 | 20 | 2.3 | 2.3 | | | | |
| 3/4 | 25 | 3 | 2.3 | 2.3 | | | |
| 1 | 32 | 3.6 | 3 | 2.4 | | | |
| 1 1/4 | 40 | 4.5 | 3.7 | 3 | 2.4 | | |
| 1 1/2 | 50 | 5.6 | 4.6 | 3.7 | 3 | | |
| 2 | 63 | 7.1 | 5.8 | 4.7 | 3.8 | | |
| 2.5 | 75 | 8.4 | 6.8 | 5.6 | 4.5 | | |
| 3 | 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 4 | 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 |
| 5 | 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 |
| 5 | 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 6 | 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 7 | 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 8 | 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 8 | 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 10 | 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 11 | 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 12 | 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 |
| 14 | 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 16 | 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 18 | 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 20 | 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 22 | 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 24 | 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 |
| 28 | 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
| 32 | 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
| 36 | 900 | | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 |
| 40 | 1000 | | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 |
| 48 | 1200 | | | 88.2 | 67.9 | 57.2 | 45.9 |
| 55 | 1400 | | | 102.9 | 82.4 | 66.7 | 53.5 |
| 60 | 1500 | | | 110.2 | 88.2 | 71.4 | 57.6 |
| 65 | 1600 | | | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
1. It is easy to butt welding and electrofusion welding to form a closed anti-seepage system. When laying along the trench, it can reduce the amount of trench excavated earthwork and reduce the amount of accessories.
2. Light weight and easy to install and handle;
3. With strong wear resistance and excellent hydraulic performance, no external protection is needed for buried pipelines. It can be applied to earthquake and soil settlement areas in mining areas, and can also be laid at the bottom of rivers by the sinking method.
4. Chemical resistance, internal, external and microbial corrosion resistance, strong corrosion resistance, and healthy. It is suitable for conveying acidic and alkaline substances, sewage, natural gas, coal gas and other substances;
5. Good environmental adaptability and frost resistance. Can be used for indoor and outdoor water supply pipelines.
6. Long service life, with a service life of more than almost 50 years;
7. Easy to recycle.
Details
Application
It is an alternative to traditional steel pipes and drainage pipes. It is mainly used for rainwater and sewage discharge, so it is widely used in highway, railway, and subway construction.
Certificate
Company Profile
High Mountain Pipe is A company specializing in the production of PE water supply pipes, PE gas pipes and PE flame-retardant, anti-static mining pipes, PE ground source heat pump pipes, PE siphon drainage pipes, PERT floor heating pipes and supporting PE water supply pipes, PE gas pipes, PE flame retardant, anti- High-tech enterprise of series products such as double-resistance pipe fittings for electrostatic mine, PE ground source heat pump pipe fittings, PE sprayed anticorrosive steel flanges, PE ball valves, PERT floor heating pipe fittings, PE siphon drainage pipe fittings, etc.
FAQ
Q: How and when can I receive my goods after payment?
A: For small batch products, they will be delivered to you by international express (DHL, FedEx, TNT, etc.) or by air. It usually takes 3-5 days to receive the goods after delivery. For high-volume products, it is worthwhile to see the goods and deliver them. It takes several days to several weeks to reach the destination port, depending on the location of the port.
Q: Can I customize the size I need?
A: Yes
Q: How to buy products?
A: Send an email to us and we will get back to you within one day.
