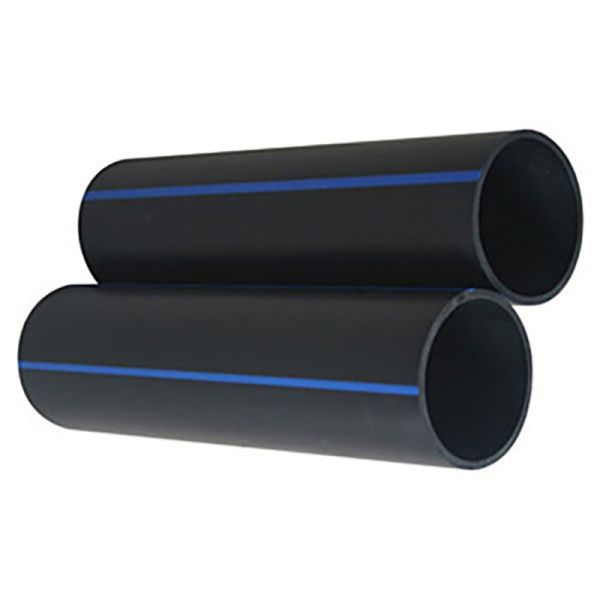

Hdpe Plastic Water Supply Pipe Large Diameter Plastic PE Pipe
----------------------------------------
Basic Info.
HDPE water pipes are widely used in the field of water supply pipe manufacturing due to their high strength, corrosion resistance, and non-toxicity. It is an important component of water supply and drainage.
Outer Diameter
DN (mm) | SDR 9
PN20 | SDR 11
PN16 | SDR 13.6
PN12.5 | SDR 17
PN10 | SDR21
PN8 | SDR26
PN6 | Packing
Loaded into 40GP/Piece
6m or 12m per Piece |
| | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | |
| 75 | 8.4 | 6.8 | 5.6 | 4.5 | | | 1085 |
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | | 754 |
| 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 | 504 |
| 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 | 378 |
| 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | 304 |
| 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | 224 |
| 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | 182 |
| 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | 143 |
| 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 | 110 |
| 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 | 90 |
| 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 | 72 |
| 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 | 56 |
| 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 | 42 |
| 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 | 30 |
| 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 | 25 |
| 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 | 20 |
| 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 | 16 |
| 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 | 12 |
| 710 | | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | 9 |
| 800 | | 72.7 | 58.8 | 47.4 | 38.1 | 30.6 | 6 |
| 900 | | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | 6 |
| 1000 | | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | 4 |
| 1200 | | | 88.2 | 67.9 | 57.2 | 45.9 | |
| 1400 | | | 102.9 | 82.4 | 66.7 | 53.5 | |
| 1500 | | | 110.2 | 88.2 | 71.4 | 57.6 | |
| 1600 | | | 117.6 | 94.1 | 76.2 | 61.2 | |
Advantage
1. Easy to handle: HDPE pipes are lighter than concrete pipes, galvanized pipes and steel pipes. It is easy to handle and install. Lower manpower and equipment requirements mean that the installation cost of the project is greatly reduced.
2. A variety of new construction methods: HDPE pipes have a variety of construction technologies, which are fully suitable for traditional excavation construction methods and new trenchless technologies such as pipe jacking, directional drilling, lining, cracking, and submersion.
3. Reliable connection: HDPE piping systems are connected by hot melt or electric hot melt, and the strength of the joint is higher than that of the pipe body, as long as the correct temperature, hot melt time, cooling time and hot melt connection method are mastered during construction according to the construction method standard Generally speaking, there is no risk of leakage during operation.
4. Electrothermal fusion: The use of special electric fusion welding machine to connect straight pipes and straight pipes, straight pipes and pipe fittings is generally used for pipes below 160mm.
5. Hot-melt butt connection: It is generally used for pipes above 160mm when using a special butt welding machine to connect pipes.
6. Steel-plastic connection: It can be connected by flange, screw thread and other methods.
Details
Application
Polyethylene PE water supply pipes are widely used in building water supply, building drainage, buried drainage pipes, building heating, gas transmission pipes, welding and telecommunications maintenance casings, industrial pipes, and agricultural pipes because of their unique advantages. Wait. Its key applications are urban water supply, urban gas supply, farmland irrigation and other industries. PE (polyethylene) raw materials are widely used in the water supply pipe manufacturing industry because of their high strength, corrosion resistance, and non-toxic properties; because it is not easy Rust, therefore, is an ideal pipe to replace ordinary iron water supply pipes.
Certificate
Company Profile
High Mountain Pipe Management Industry is mainly use HDPE recycled plastic to develop and produce plastic industrial film. Production of non-toxic, green, corrosion-resistant, and good performance MUHDPE alloy pipes, HDPE national standard corrugated pipes, HDPE national standard corrugated pipes, EPTU three-wall seismic and impact resistant pipes, HDPE steel belts to increase strength spiral corrugated pipes, SRWPE plastic steel dimensional winding pipes , HDPE double wall corrugated pipe, FRPP double wall reinforced corrugated, HDPE water supply pipe, CPVC cable protection pipe, PE porous general cable protection pipe, FRP sand pipe, plastic inspection well and related supporting series products. Provide research and development for different municipal construction pipe network projects. Integrated services in production, sales, installation and engineering skills
FAQ
Q: How can you guarantee the goods you offer is qualified?
A: We always believe honesty and responsibility are basis of one company, so whatever products we provide for you all are qualified. We will have goods tested and provide COA before delivery for sure.
Q: How and when can I receive my goods after payment?
A: For small batch products, they will be delivered to you by international express (DHL, FedEx, TNT, etc.) or by air. It usually takes 3-5 days to receive the goods after delivery. For high-volume products, it is worthwhile to see the goods and deliver them. It takes several days to several weeks to reach the destination port, depending on the location of the port.
Q: Is the price on this page correct?
A: The listed prices are for reference only, please contact us directly for the latest prices.
