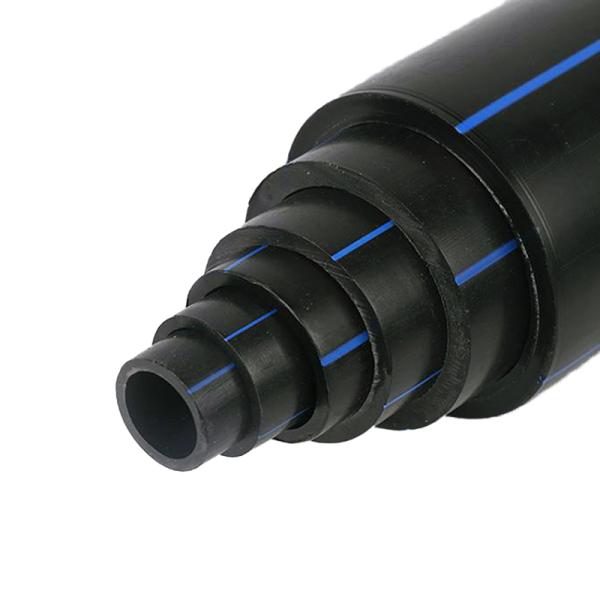

HDPE Pipes 24 inch PE100 Water Supply Pipe For Industrial Use
----------------------------------------
Basic Info.
The main features of HDPE pipes are: good toughness and flexibility; small friction coefficient and strong passing ability; convenient construction, good chemical stability, long service life, suitable deflection, good resistance to rapid crack transmission, resistance to Low temperature, conform to the requirements of the times, "green" environmental protection.
| Size | | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa |
| | | SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 |
| OD(inch) | OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
| 1/2 | 20 | 2.3 | 2.3 | | | | |
| 3/4 | 25 | 3 | 2.3 | 2.3 | | | |
| 1 | 32 | 3.6 | 3 | 2.4 | | | |
| 1 1/4 | 40 | 4.5 | 3.7 | 3 | 2.4 | | |
| 1 1/2 | 50 | 5.6 | 4.6 | 3.7 | 3 | | |
| 2 | 63 | 7.1 | 5.8 | 4.7 | 3.8 | | |
| 2.5 | 75 | 8.4 | 6.8 | 5.6 | 4.5 | | |
| 3 | 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 4 | 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 |
| 5 | 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 |
| 5 | 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 6 | 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 7 | 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 8 | 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 8 | 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 10 | 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 11 | 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 12 | 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 |
| 14 | 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 16 | 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 18 | 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 20 | 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 22 | 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 24 | 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 |
| 28 | 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
| 32 | 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
| 36 | 900 | | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 |
| 40 | 1000 | | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 |
| 48 | 1200 | | | 88.2 | 67.9 | 57.2 | 45.9 |
| 55 | 1400 | | | 102.9 | 82.4 | 66.7 | 53.5 |
| 60 | 1500 | | | 110.2 | 88.2 | 71.4 | 57.6 |
| 65 | 1600 | | | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
Environmental protection and health: PE water pipes meet environmental protection standards, do not contain any harmful substances, and are harmless to human health.
Simple maintenance: PE water pipes are not easily affected by external factors, have long service life, and are simple to maintain, reducing maintenance costs.
Good flexibility and toughness: PE water pipes have good flexibility and toughness, can adapt to changes in terrain and geological conditions, and are not easy to break.
Impact resistance: PE water pipes have excellent impact resistance and can withstand a certain degree of external impact and extrusion.
Details
Application
Sewage treatment system: PE water pipes can be used in sewage treatment systems, such as water pipelines in urban sewage treatment plants, industrial wastewater treatment plants, etc.
Liquefied gas transportation system: PE water pipes can be used in liquefied gas transportation systems, such as liquefied petroleum gas, liquefied natural gas, etc. transportation pipelines.
Medical and health field: PE water pipes can be used in medical and health fields, such as infusion pipes, hemodialysis pipes, etc.
Certificate
Company Profile
Located in Jiangsu, with convenient water and land transportation. It is a comprehensive enterprise integrating research, development, design, application, production and sales. The company has production lines for PE water supply pipes with larger diameters, prestressed corrugated pipes, corrugated pipe production lines, PVC pipe production lines and other equipment. Specializing in the production of PE water supply pipes, prestressed corrugated pipes, HDPE corrugated pipes, plastic blind trenches, permeable pipes, etc. The products are mainly used in municipal administration, highways, railways, water conservancy, power, environmental greening and infrastructure construction, and are used in municipalities and expressways. Many national key projects such as railways and railways have been well received by engineering experts and users.
The company analyzes the lifestyle and aesthetic trends of modern people, integrates the concept of excellent pipeline home culture, and relies on the industry-leading integrated system of R&D, design, production, installation, and service to develop a one-stop personalized customized pipeline system solution. Provide optimized, cost-effective health products for thousands of families.
FAQ
Q: After reading your FAQ, I am very satisfied. How can I start buying my order?
A: Please contact our sales manager by email or phone, thank you.
Q: Why choose us?
A: We are a professional manufacturer with competitive price, excellent quality and fast delivery time.
Q: How to buy products?
A: Send an email to us and we will get back to you within one day.
